Product Description
This machine is suitable for all kinds of machinery processing plants, auto parts, fixture, magnetic
steel, mold and other parts processing industry. This machine can grind parts made of steel, iron,
ceramics and non-ferrous metals. The perfect symmetrical structure of the surface grinder ensures
the stability and working accuracy of the machine tool. Independent grinder special hydraulic system, smooth operation, small temperature rise, to provide power for precision grinding.
Technical Parameters
For Metal Steel Flat Grinder Precision Hydraulic Surface Grinding Machine
| Technical specification | CQ-25 |
| Technical specification | Table size | mm | 520*520 |
| Maximum grinding area of table | mm | 560*270 |
| Table T-slot | mm | 1*14 |
| Grinding head | Distance from center line of sand wheel shaft to work surface | mm | 450 |
| Grinding wheel speed | R/min | 2850 |
| Oil pressure system | Hydraulic motor | kw | 1.5 |
| Working pressure | Mpa | 4 |
| Tank capacity | L | 100 |
| Maximum discharge | L/min | 20 |
| Motor power | Spindle motor | kw | 1.5 |

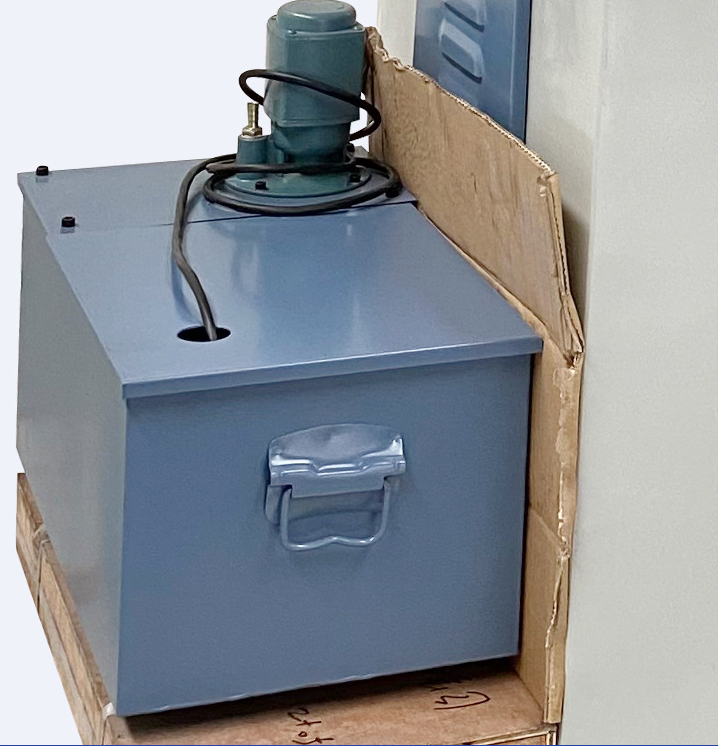

| Cooling machine | w | 40 |
| Machine weight | Net weight | kg | 950 |
| Gross weight | kg | 1050 |
| Working accuracy | Parallelism Spindle motorof the machined surface to the base surface | mm | 300:0.005 |
| The minimum value of digital display | um | 0.005 |
| Surface roughness | um | Ra0.32 |
| Overall dimension | mm | 1680*1250*1920 |
Product Details
1. Stable structure
Beautiful appearance, reasonable structure, stable operation, high performance.
2. Easy to operate
The machine slides smoothly, the accuracy is high, the use time is long, the operation is flexible and light.
3. Support customization
Various product specifications can be customized according to different needs of customers.
For Metal Steel High Precision Hydraulic Surface Bench Grinding Machine
